Using the McLaren Applied USB Logger with ATLAS#

This guide provides a step-by-step overview of how to use a USB Logger system to collect, transfer, and visualise sensor data efficiently. It covers setup on the vehicle, data offloading procedures, and how to import and decode the data in ATLAS. Designed for flexibility, the system supports a range of operational environments.

Prerequisites#

  • USB Logger Recorder License.
  • ATLAS version 11.4.3.XXX or later.
  • McLaren Applied USB Logger unit.
  • TAG320 or VCU-500.

If you're interested in how McLaren Applied can advance your data systems, contact sales@mclarenapplied.com.

Setup#

Prefer to watch a video demonstrating how to integrate the USB Logger with ATLAS?

1. Connect the Logger to the ECU

  • Use an Ethernet cable to connect the ECU to the USB Logger.
  • If you need quick access to the USB for session offloading, set the log_destination in logger_config.json to usb_loom.

In this mode, the logger writes data through the loom to a USB stick placed in an easily accessible location for fast retrieval.

  • (Optional) You can adjust other logger configurations by editing the logger_config.json file. Each field includes comments explaining its purpose and valid values.

Warning

You can change the logger’s IP address in the logger_config.jsonc file under the ethernet_settings section.  The Logger IP address must be in the same range as the ECU IP address.

**2. Configure Logging from the ECU

  • Open System Monitor, connect to the TAG unit (e.g. TAG-320, TAG-510, or TAG-700), and in the Explorer tab navigate to: BIOS > Data Acquisition > Telemetry > TLM-Px.

  • Locate the parameter TLMPxIPAddress and set it to the logger’s IP address from the logger_config.jsonc.

Tip

While the parameter may appear as NTAG320TLMPxIPAddress on TAG-320 units, other models like TAG-510 or TAG-700 may use a slightly different prefix. To ensure compatibility, look for the TLMPxIPAddress field under the Telemetry > TLM-Px section in the BIOS tree. This structure is consistent across supported TAG units.

  • In ATLAS, go to Tools > Options > System Monitor Folders and set up the folders containing the required ECU configuration files (e.g., PGVs).

Info

When the vehicle is powered on, the ECU will automatically begin logging data to the USB drive. Depending on session length, multiple .bin files may be generated.

3. Swapping the USB

  • When the vehicle enters the pit, remove the used USB and insert a new one.
  • The ECU will continue logging to the new USB without interruption.

4. Insert the USB into a PC

  • Plug the USB into a PC using the adapter provided in the kit.
  • Copy the .bin files to a local folder on your PC.
  • After copying, you may delete the .bin files from the USB to prepare it for reuse.

Info

Even if you accidentally delete the logger_config.jsonc file from the USB, the logger will continue recording using the last configuration it stored locally.

When you plug the USB back into the logger it will automatically restore the latest version of logger_config.jsonc onto the USB. You can then review or update the configuration as needed.

5. Add a USB Logger Recorder in ATLAS

  • Launch ATLAS.

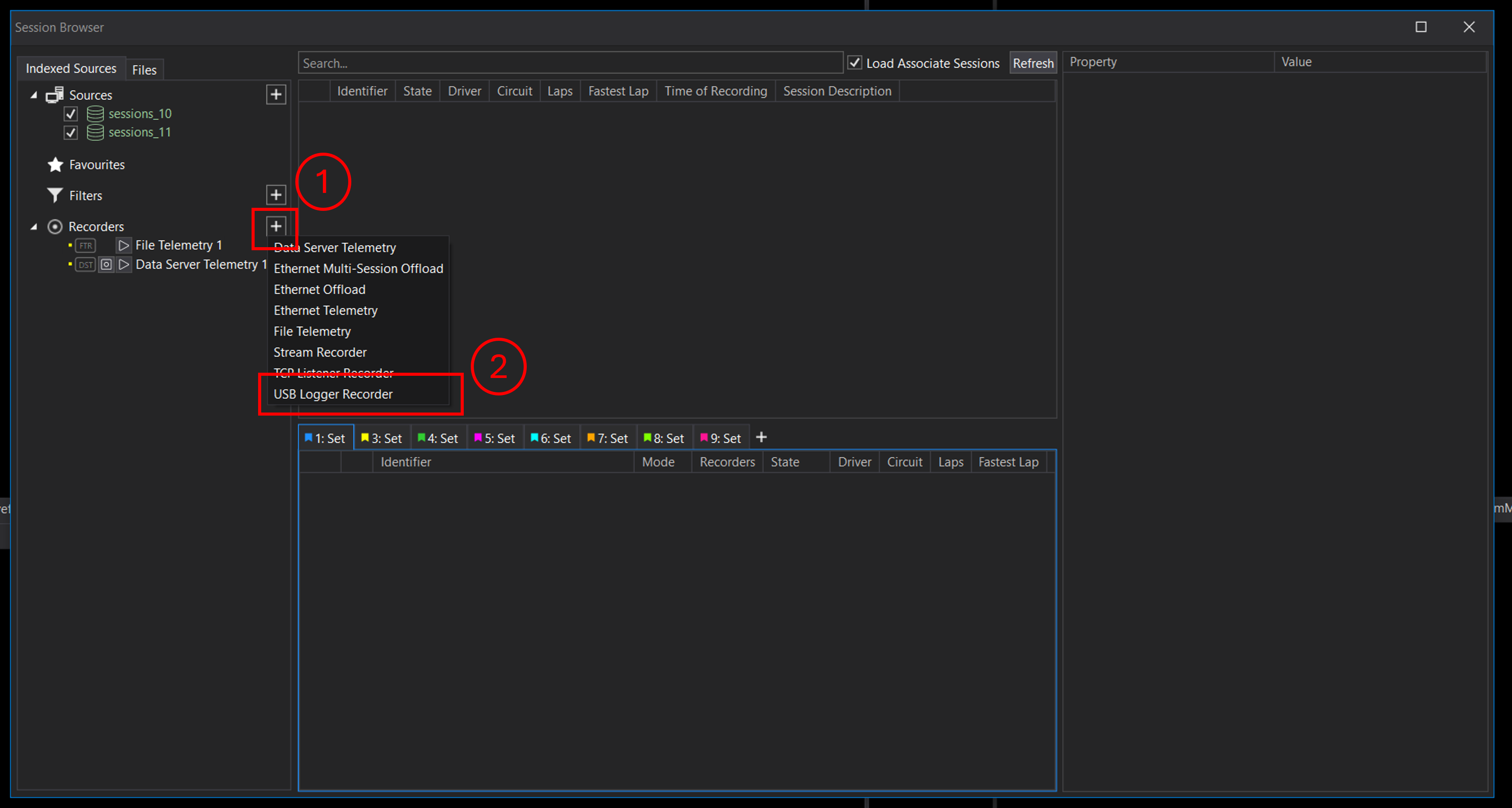

  • Open the Session Browser (CTRL + L) and create a new recorder.

New Recorder

  • Set the following:
    • Database engine (where the data will be stored)
    • Folder path to the copied .bin file(s)
    • Auto Export SSN2 (optional) to automatically export the created sessions to SSN2 once processing is complete.

New Recorder

ATLAS will automatically detect and import multiple .bin files as separate sessions.

Note

When specifying the folder path, ensure that all required bin files are located directly within that directory. ATLAS will not process files located in subfolders.

6. Start the Recorder

  • The recorder will process each binary file individually, creating a new session per bin file. If Auto Export SSN2 was selected when configuring the recorder it will export the converted .ssn files to the export folder after processing is finished.
  • You can monitor progress via the status bar located in the bottom-right corner of ATLAS.

New Recorder

Warning

The USB Logger Recorder does not record in the same way as other recorders. Behind the scenes it replays existing data and generates a historical session file from the replay. As a result you cannot drag the USB Logger recorder into a Set until it has finished converting the data. This recorder is not used for real-time replay.

7. Using the Data

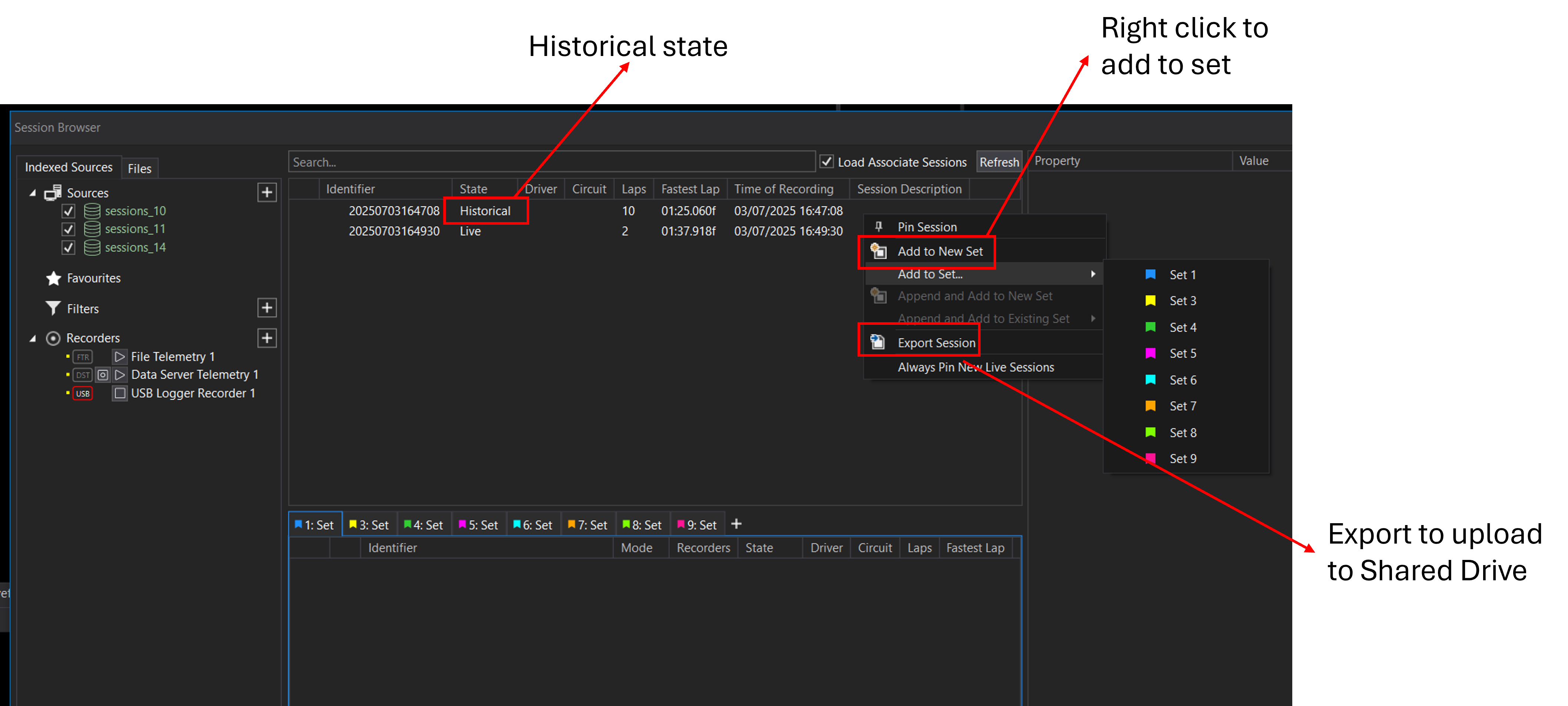

  • Once the session is fully read and marked as Historical, it will appear in the Sources panel.
  • You can import the session into a Set using Append or Compare mode, like any other historical data.

New Recorder

Depending on the selected database engine:

  • SQLite: Share the exported .ssn file via a network drive.
  • SQLRace: Team members with access to the database can view the session directly.

Use Cases#

The USB Logger system is designed for flexibility and ease of use across a wide range of environments and industries. Example applications include:

Extreme Environments Water-resistant design allows use in harsh weather or rugged terrain.

Limited Storage Ideal for systems where the ECU has limited onboard storage capacity.

Endurance Operations Supports long-duration sessions where quick data offloading is essential.

Difficult Access Enables data retrieval without needing direct physical access to the ECU.

Limited Telemetry Bandwidth Provides a fast alternative to telemetry for transferring session data.

Scalable for Small Teams Runs directly on an engineer’s PC without requiring advanced setup. Can be integrated into larger systems later using tools like the SQLRace API.
